HDMI Extender over CAT5e (1080p) Kit - HE01ERK

SC&T DirectSKU: HE01ERK

Price:
Sale price$61.20 Regular price$68.00

Description

Description

The SC&T HE01ERK HDMI Extender over CAT5e Kit is an HDMI extender kit with a transmission distance up to 70 meters, and resolution up to 1080p@60Hz (up to 40M). You can simply use an economical CAT5e cable to extend the signal without the need for an external power source. Built with the dongle design, the HE01ERK allows you to directly connect to an HDMI display without an HDMI cable.

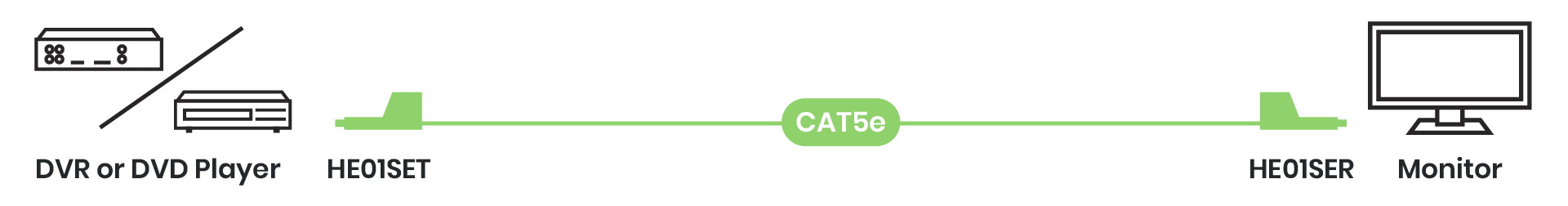

A compact device that you can easily and quickly install your A/V environment, the HE01ERK HDMI Extender over CAT5e Kit includes one (1) HE01SET Tx unit and one (1) HE01SER Rx unit, ready for plug-and-play operation out of the box with no configuration required. With the transmitter (on the HDMI source side) and the receiver (on the display side), the HE01ERK can use a single CAT5e network cable to display an HDMI signal on a remote monitor. This makes the HE01ERK a perfect solution for to extend HDMI signals over short distances for applications such as as NVR to monitor, or PC to TV, among others.

Features

    • Resolutions up to 1080p@60Hz
    • Signal extension up to 70M over CAT5e (or above) network cable
    • Built-in micro USB connector to stabilize the signal in a long cable run

Technical Specifications

Product Kit Contents
    • 1 X HE01SET Transmitter
    • 1 X HE01SER Receiver
    • 1 X Micro USB to DC plug cable
    • User guide
Ports & Interfaces
  • HE01SET Transmitter
    • Video Input: 1 x HDMI Type A
    • Video Output: 1 x RJ45
  • HE01SER Receiver
    • Video Input: 1 x RJ45
    • Video Output: 1 x HDMI Type A
Compliance
    • HDMI 1.3
Max. HDMI Resolution
    • 1080p@60Hz
Max. Transmission Distance
    • 70M at 720p, 40M at 1080p
Audio Format
    • LPCM 2.0
Power Supply
    • DC 5V 1A (Optional)
Power Consumption
    • 600mA
Operating Temperature
    • 32°F ~ 131°F (0°C ~ 55°C)
    • Fanless, free air cooling
Storage Temperature
    • -4°F ~185°F (-20°C ~ 85°C)
Humidity
    • Up to 95% (non-condensing)
Dimensions
    • 57.5 × 24 × 20.2mm (each unit)
Shipping Weight
    • 2 lbs (1.361 Kg)
Agency Compliance
    • RoHS compliant
